Preface
Thank you for choosing a Graphtec ASF1-30.
The ASF1-30 is a media feeder that can be attached to the CE8000-40.
By using the ASF1-30, the CE8000-40 can cut multiple media continuously.
To ensure high cutting quality and optimal productivity, be sure to read this User's Manual thoroughly prior to use.
Notes on this Manual
(1) No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, without the prior written permission of Graphtec Corporation.
(2) The product specifications and other information in this manual are subject to change without notice.
(3) While every effort has been made to provide complete and accurate information, please contact your sales representative or nearest Graphtec vendor if you find any unclear or erroneous information or wish to make other comments or suggestions.
(4) Not with standing the stipulations in the preceding paragraph, Graphtec Corporation assumes no liability for damages resulting from either the use of the information contained herein or the use of the product.
Registered Trademarks
All names of companies, brands, logotypes, and products appearing in this manual are the trademarks or registered trademarks of their respective companies.
Copyright
This User's Manual is copyrighted by Graphtec Corporation.
After Turning on the Plotter
During operation, various settings, and immediately after completion of operation, the tool carriage for CE8000-40, and the loaded media, may move suddenly. Do not let your hands, hair, or clothing get too close to the moving parts or within their range of movement. Do not place any foreign objects in or near these areas either. If your hands, hair, clothing, or the like get caught in, or wrapped around moving parts, you may be injured and the machine may be damaged.
Precautions for handling

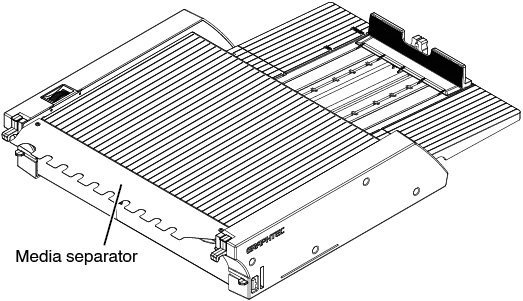

The media separator is easily deformed, so be careful not to apply strong force to it or hit it.
Deformation of the media separator can cause malfunctions.
Notes on the specifications and accessories
Specifications and accessories depend on the sales area. For details, please contact your dealer.
WARNING
The United States Federal Communications Commission has specified that the following notice must be brought to the attention of users of this product.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
USE SHIELDED CABLES
To comply with FCC Class A requirements, all external data interface cables and connectors must be properly shielded and grounded. Proper cables and connectors are available from GRAPHTEC’s authorized dealers or manufacturers of computers or peripherals. GRAPHTEC is not responsible for any interference caused by using cables and connectors other than those recommended or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment.

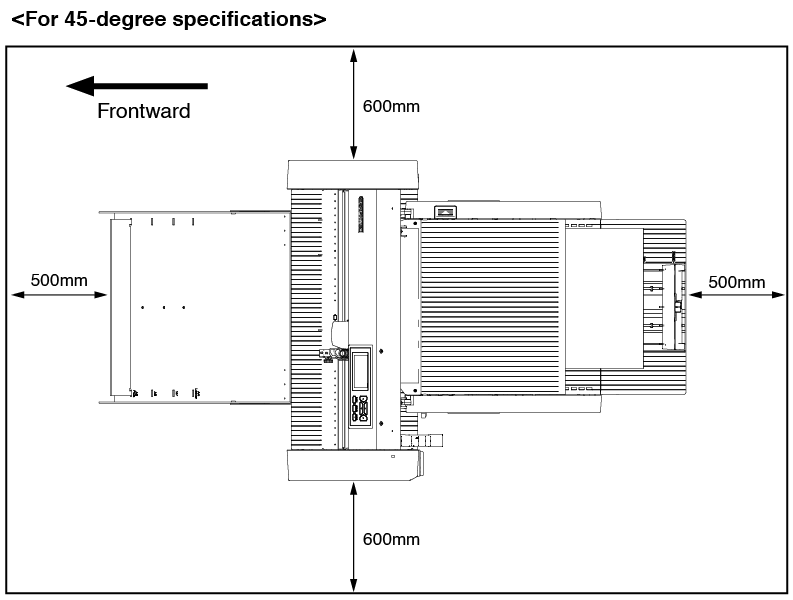

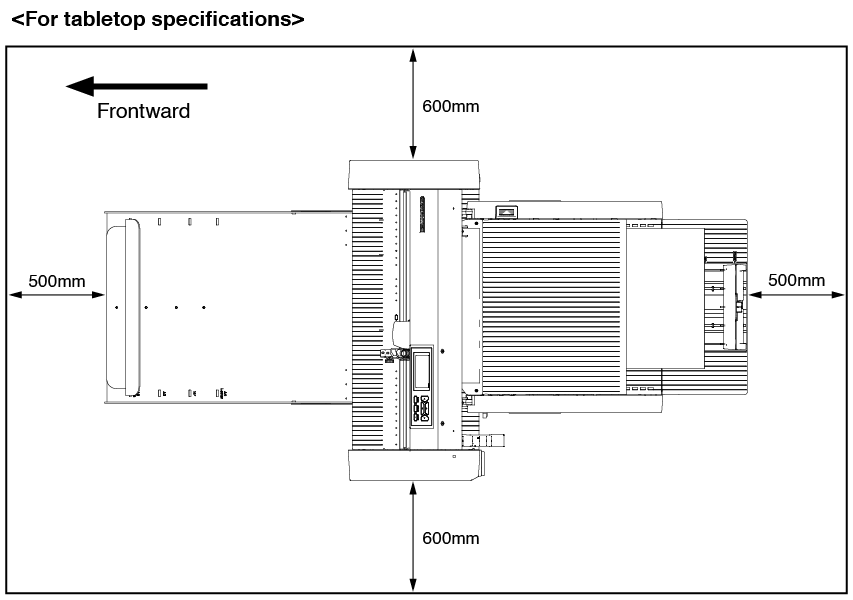

Installation space
Please secure a space for installation as according to the below illustration.
Frontward and backward the machine, please take enough space for operation.

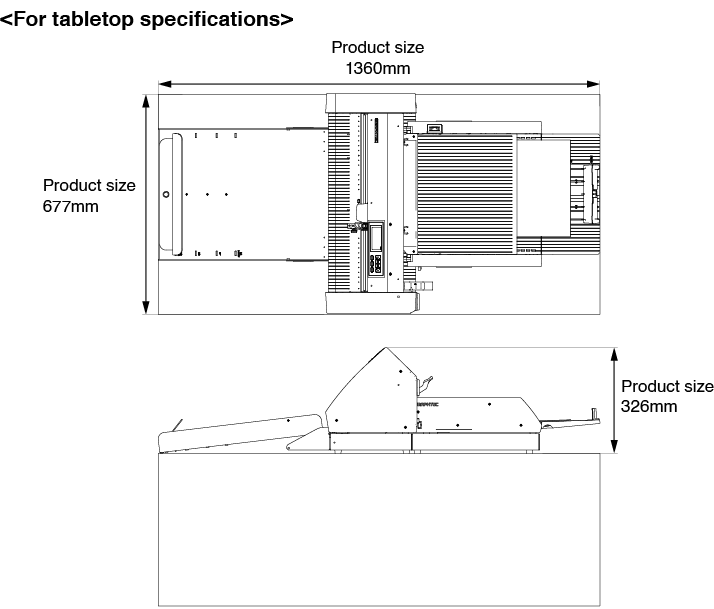

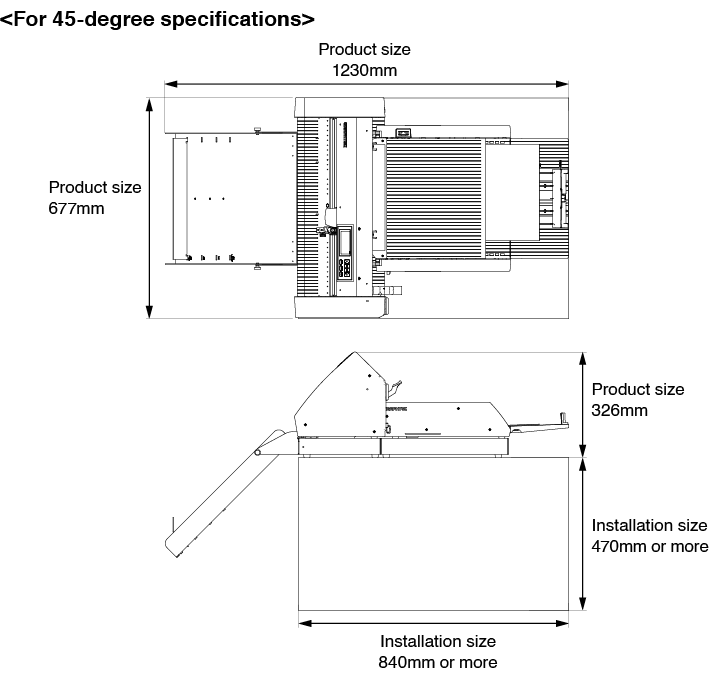

Product size and installation size
The installation size (area) when installing on a tabletop should be larger size than the product size.
There is no specific recommended value for the height when installing on a tabletop.
