Appendix
This chapter describes the specification of the plotter.
A.1 Main Specifications
|
CE8000-40 *8 |
CE8000-60 *8 |
CE8000-130 *8 |
|
|
CPU |
32bit CPU |
||
|
Configuration |
Grit-rolling plotter |
||
|
Drive |
Digital servo |
||
|
Max. Cutting Area |
375 mm× 50 m |
603 mm×50 m |
1270 mm×50 m |
|
Guaranteed precision cutting area *1 |
355 mm× 2 m |
583 mm×2 m 583 mm× 5 m *2 |
1250 mm×2 m 1250 mm×5 m *2 |
|
Available media width |
Min: 50 mm Max: 484 mm (19 inch) |
Min: 50 mm Max: 712 mm (28 inch) |
Min: 85 mm Max: 137 2mm (54 inch) |
|
Available roll media diameter |
Max. diameter: 180 mm, Min. diameter: 76 mm |
||
|
Media weight that can be loaded |
5 kg |
9 kg *7 |
17 kg |
|
The number of push rollers |
2 |
3 |
|
|
Max. cutting speed |
90 cm/s (45°direction) |
100 cm/s (45°direction) |
|
|
Specifiable speeds (cm/s) |
1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 64 |
1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 71 |
|
|
Max. cutting force |
4.41N (450gf) |
||
|
Min. character size |
5 mm (0.197 in.) alphanumeric Helvetica med. Font *1 |
||
|
Mechanical resolution |
0.005mm |
||
|
Programmable resolution |
GP-GL: 0.1 / 0.05/0.025/0.01mm HP-GL *3: 0.025mm |
||
|
Repeatable accuracy *1 |
0.1 mm or less / in unit of 2 m (Designated Film and Cut Conditions) |
||
|
Number of cutters/pens |
1 pc. |
||
|
Usable pen type |
Water-based fiber-tip and Ballpoint pen |
||
|
Compatible media |
Mono-vinyl chloride media, fluorescent media, and reflective media up to 0.25 mm thick (Excluding high-intensity reflective film) |
||
|
Interface |
USB 2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100 BASE-TX *6 |
||
|
Buffer memory |
2 MB |
||
|
Resident command sets |
GP-GL/HP-GL *3 (Control panel switching, Auto switching) |
||
|
LCD display |
Touch panel (240-dot x 128-dot) |
||
|
Power supply |
AC100-120V / AC200V-240V 50/60Hz |
||
|
Power consumption |
140W or less |
||
|
Operating environment |
10 to 35℃, 35 to 75% R.H. (non-condensing) |
||
|
Guaranteed accuracy environment |
16 to 32℃, 35 to 70% R.H. (non-condensing) |
||
|
External dimensions (Approx.) (W × D × H) |
677 × 451 × 266 mm *4 |
903 × 288 × 266 mm *5 903 × 582 × 1076 mm *4 |
1644 × 811 × 1076 mm *4 |
|
Weight ( Approx.) |
11 kg *4 |
14 kg *5 21 kg *4 |
40 kg *4 |
*1: Varies depending on the type of Graphtec-authorized film and the cutting conditions.
*2: When using basket.
*3: HP-GL is a registered trademark of the US Hewlett Packard Company.
*4: Roll-medium tray or stand is included.
*5: CE8000-60 main unit only.
*6: Wired LAN support varies depending on the sales area.
*7: Only when using the stand.
*8: For the Indian market, the model names will be CE8000-40 I, CE8000-60 I, and CE8000-130 I.
A.2 Options and Supplies
Supplies
|
Item |
Model |
Contents |
|
Cutter plunger |
PHP33-CB09N-HS |
Used with φ0.9 mm diameter cutter blades (for CB09) |
|
PHP33-CB15N-HS |
Used with φ1.5 mm diameter cutter blades (for CB15) |
|
|
Water-based fiber-tip pen plunger |
PHP31-FIBER |
Plunger for water-based fiber-tip pen (set of 1) |
|
Water-based fiber-tip pen |
KF700-BK |
1 set (10 pcs. Black) |
|
KF700-RD |
1 set (10 pcs. Black) |
|
|
Oil-based ballpoint pen plunger |
PHP34-BALL |
Plunger for oil-based fiber-tip pen (set of 1) |
|
Oil-based ballpoint pen |
KB700-BK |
1 |
|
Ballpoint pen plunger *1 |
PM-BH-002 |
Plunger for ballpoint pen (set of 1) |
|
Loupe for adjusting blade length for cutter blade |
PM-CT-001 |
1 pc. |
|
Carrier Sheet |
CR09300-A3 |
2 sht. (A3 size) |
|
Cutting mat for CE8000-40 |
PM-CR-013 |
1 set |
|
Cutting mat for CE8000-60 |
PM-CR-014 |
1 set |
|
Cutting mat for CE8000-130 |
PM-CR-015 |
1 set |
|
USB cable |
PM-ET-001 |
1 pc. (cable length: 2.9 m) |
*1: When using the Ballpoint Pen Plunger (PM-BH-002), a separate refill is required.
Please use a commercially available product that complies with ISO12757-2 G2 standards.
For detailed information about the cutter blade, refer to the Cutter Blade Manual.
The Cutter Blade Manual is available at:
https://www.graphteccorp.com/support/
Please check our company's home page for the latest information on supplies.
Options
|
Item |
Model |
Contents |
Quantity |
|
Stand |
ST0122 |
Used with CE8000-60 |
1 set |
|
Basket |
PG0111 |
Used with CE8000-60 |
1 set |
|
PG0112 |
Used with CE8000-130 |
1 set |
|
|
Roll-medium tray |
OPH-A57 |
Used with CE8000-60 |
1 set |
|
Carrier Sheet Table |
OPH-A45 |
Used with CE8000-40/60 |
1 set |
Optional items may vary depending on the area. For details, please contact the distributor where you purchased.
Please check our company's home page for the latest information on supplies.
A.3 External Dimensions

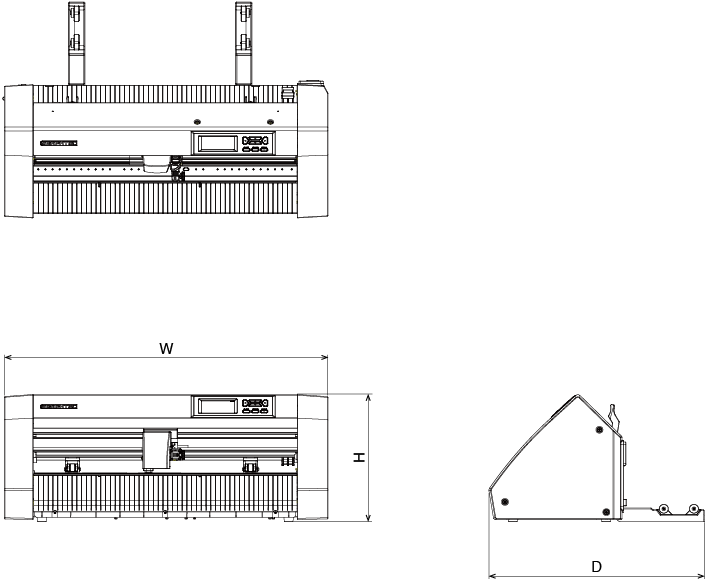

CE8000-40
Unit: mm
Dimensional accuracy: ±5mm
|
CE8000-40 |
|
|
External dimensions (approx.) (W × D × H) |
677 × 451 × 266 mm |

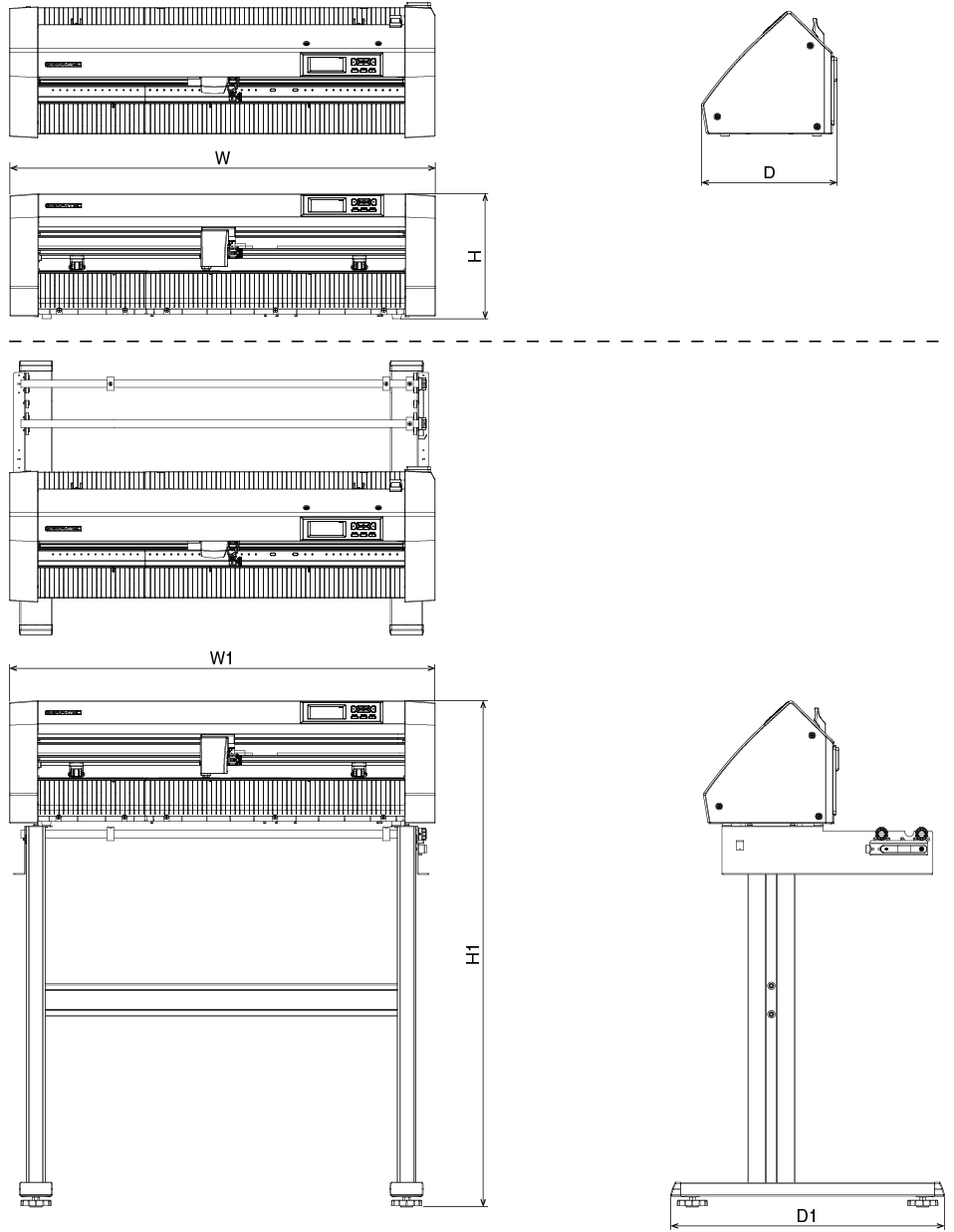

CE8000-60
Unit: mm
Dimensional accuracy: ±5mm
|
CE8000-60 |
|
|
External dimensions (approx.) (W × D × H) External dimensions (approx.) (W1 × D 1× H1) |
903 × 288 × 266 mm 903 × 582 × 1076 mm |

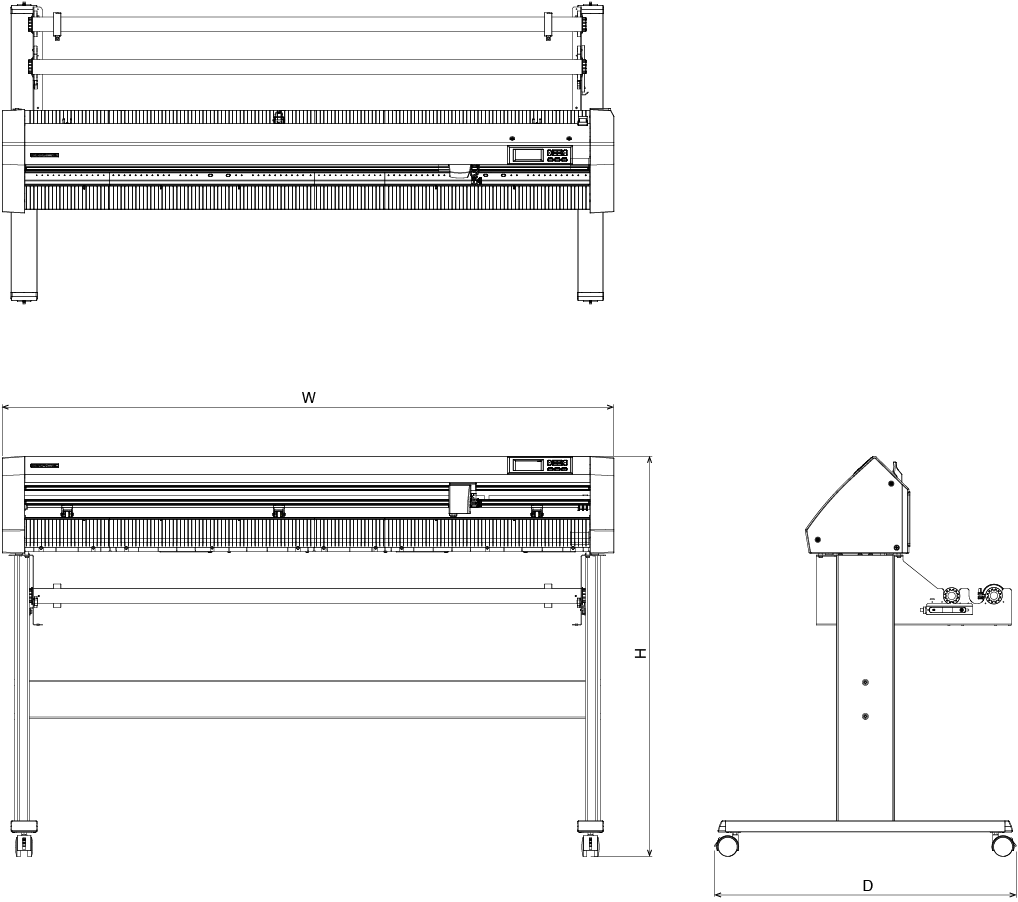

CE8000-130
Unit: mm
Dimensional accuracy: ±5mm
|
CE8000-130 |
|
|
External dimensions (approx.) (W × D × H) |
1644 × 811 × 1076 mm |

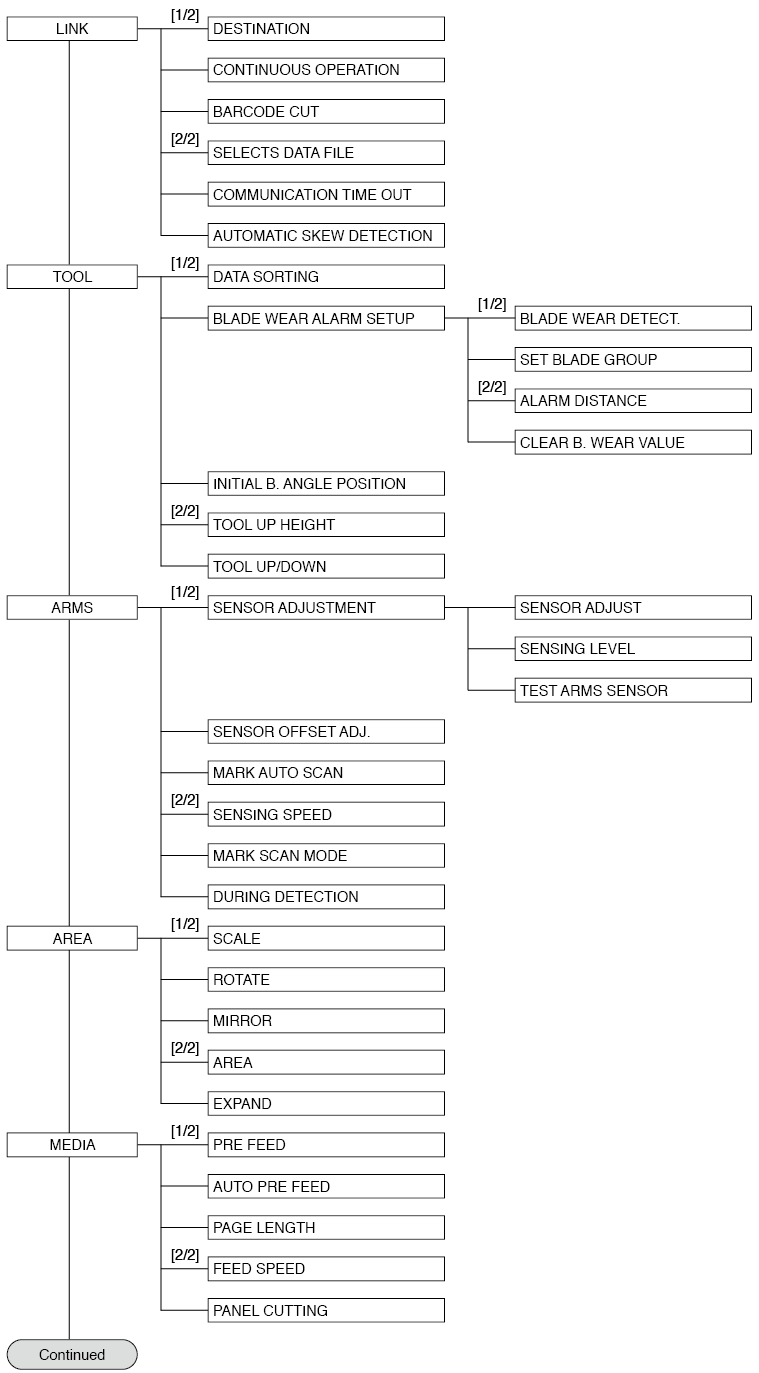

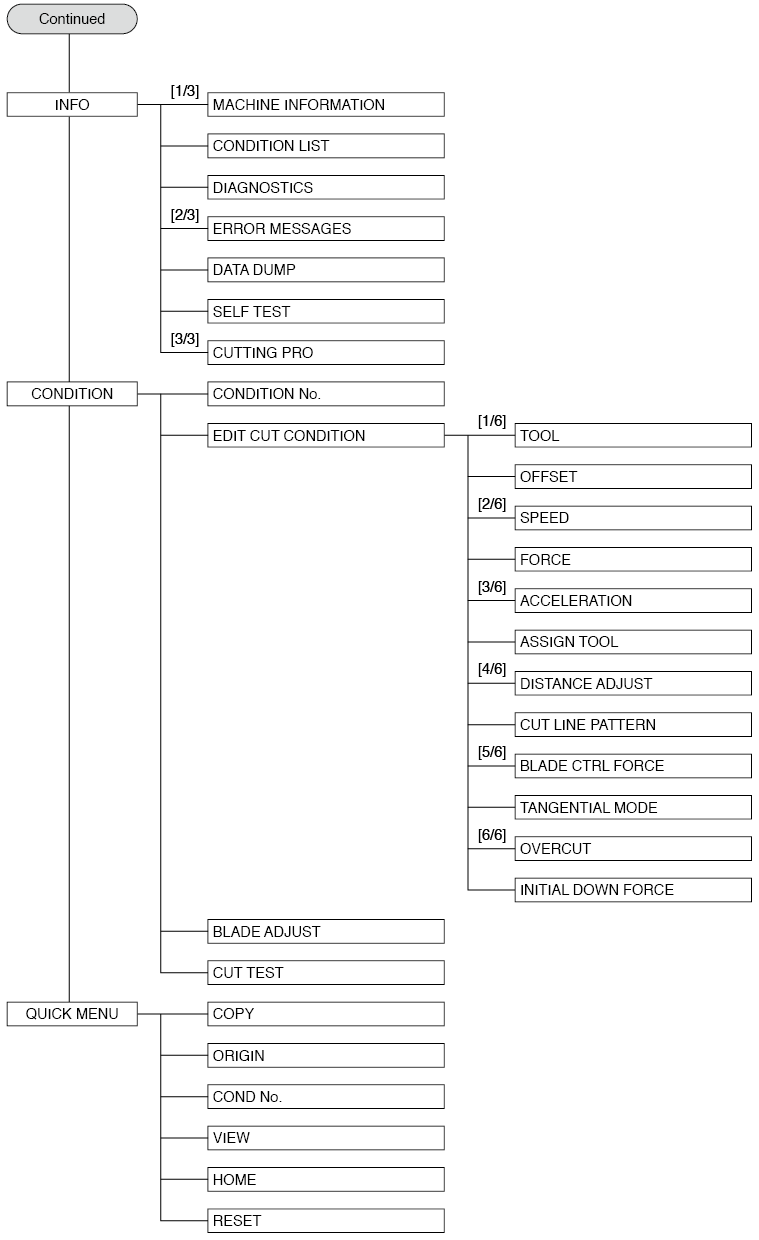

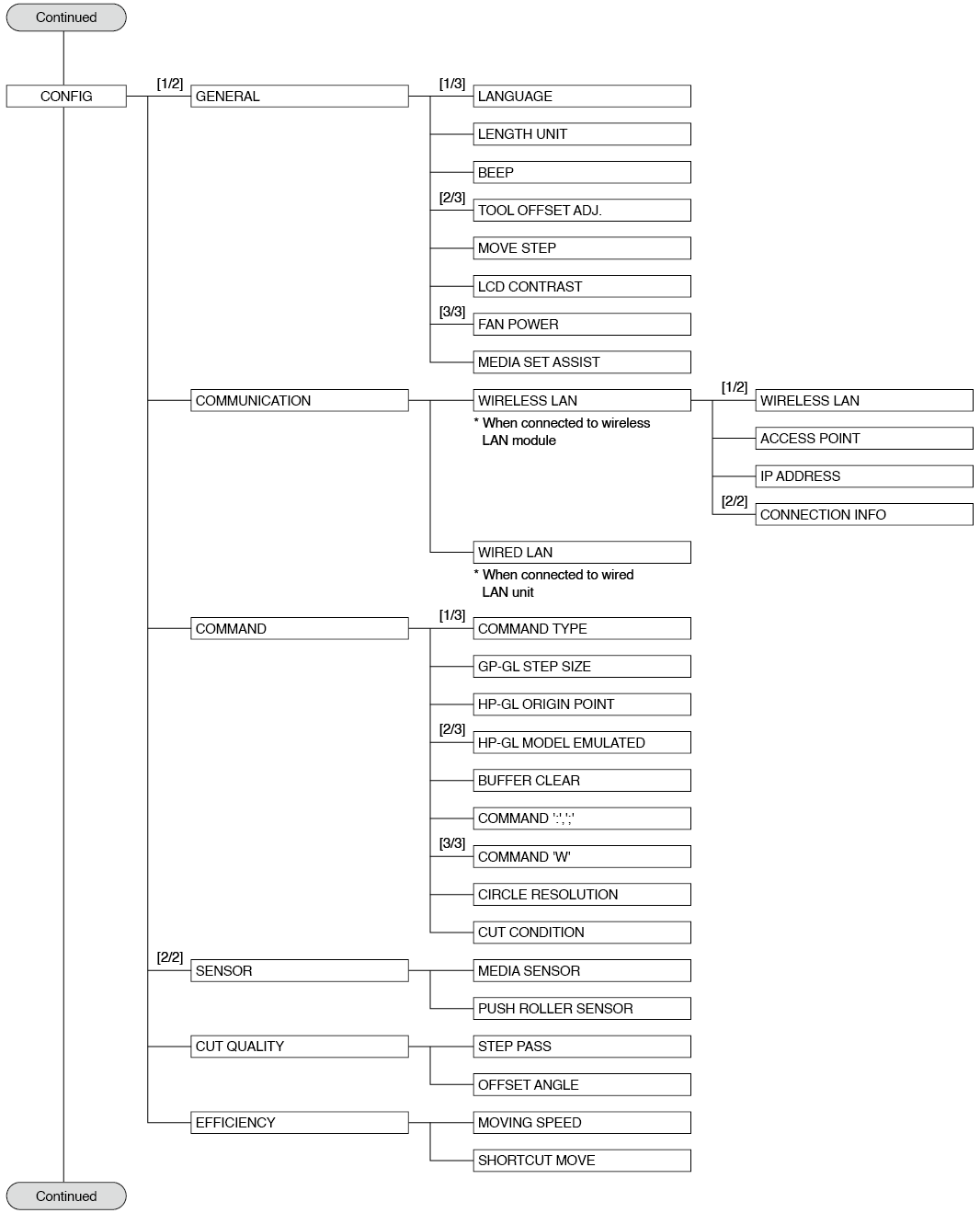

A.4 Menu Tree
A.5 Initial Setting
|
Menu items |
Setting item |
Initial value |
|||
|
DATA LINK (LINK) |
DESTINATION |
USB DRIVE |
|||
|
COMMUNICATION TIME OUT |
10 sec |
||||
|
AUTOMATIC SKEW DETECTION |
10 mm |
||||
|
TOOL SETTING (TOOL) |
DATA SORTING |
OFF |
|||
|
BLADE WEAR ALARM SETUP |
OFF |
||||
|
INITIAL B. ANGLE POSITION |
2 mm BELOW |
||||
|
TOOL UP HEIGHT |
NORMAL |
||||
|
ARMS SETTING (ARMS) |
SENSOR ADUSTMENT |
SENSING LEVEL X |
70 |
||
|
SENSING LEVEL Y |
80 |
||||
|
SENSOR OFFSET ADJ. |
CORRECTION VALUE X |
0.0 mm |
|||
|
CORRECTION VALUE Y |
0.0 mm |
||||
|
MARK AUTO SCAN |
ON |
||||
|
SENSING SPEED |
30 cm/s |
||||
|
MARK SCAN MODE |
OFF |
||||
|
CUT AREA (AREA) |
SCALE |
1 |
|||
|
ROTATE |
OFF |
||||
|
MIRROR |
OFF |
||||
|
CUT AREA LOWER LEFT |
(Default) |
||||
|
CUT AREA UPPER RIGHT |
(Default) |
||||
|
EXPAND |
OFF |
||||
|
MEDIA SETTING (MEDIA) |
PRE FEED |
1 m |
|||
|
AUTO PRE FEED |
OFF |
||||
|
FEED LENGTH |
1 m |
||||
|
PAGE LENGTH |
200.0 cm (CE8000-40) 500.0 cm (CE8000-60/130) |
||||
|
FEED SPEED |
NORMAL |
||||
|
PANEL CUTTING |
OFF |
||||
|
DIVIDE LENGTH |
100.0 cm |
||||
|
CONFIGURATION (CONFIG) |
GENERAL |
LANGUAGE |
(Selected at initial power-on) |
||
|
LENGTH UNIT |
(Selected at initial power-on) |
||||
|
BEEP |
ON |
||||
|
TOOL OFFSET ADJ. |
CORRECTION VALUE X |
0.0 mm |
|||
|
CORRECTION VALUE Y |
0.0 mm |
||||
|
MOVE STEP |
0.1 mm |
||||
|
LCD CONTRAST |
0 |
||||
|
FAN POWER |
NORMAL |
||||
|
MEDIA SET ASSIST |
ON |
||||
|
COMMUNICATION |
WIRELESS LAN |
WIRELESS LAN |
OFF |
||
|
IP ADDRESS |
DHCP |
OFF |
|||
|
IP ADDRESS |
192.168.0.2 |
||||
|
SUBNET MASK |
255.255.255.0 |
||||
|
GATEWAY |
192.168.0.254 |
||||
|
WIRED LAN |
DHCP |
OFF |
|||
|
IP ADDRESS |
192.168.0.1 |
||||
|
SUBNET MASK |
255.255.255.0 |
||||
|
GATEWAY |
192.168.0.254 |
||||
|
COMMAND |
COMMAND TYPE |
AUTO |
|||
|
GP-GL STEP SIZE |
0.100 mm |
||||
|
HP-GL ORIGIN POINT |
LOWER LEFT |
||||
|
HP-GL MODEL EMULATED |
7586 |
||||
|
COMMAND ':',';' |
ENABLED |
||||
|
COMMAND 'W' |
TOOL UP |
||||
|
CIRCLE RESOLUTION |
DEFAULT |
||||
|
CUT CONDITION |
COMMAND PRIORITY |
||||
|
CONFIGURATION (CONFIG) |
SENSOR |
MEDIA SENSOR |
ENABLED |
||
|
PUSH ROLLER SENSOR |
ENABLED |
||||
|
CUT QUALITY |
STEP PASS |
1 |
|||
|
OFFSET ANGLE |
30 |
||||
|
EFFICIENCY |
MOVING SPEED |
AUTO |
|||
|
SHORTCUT MOVE |
ON |
||||
|
EDIT CUT CONDITION |
No.1 |
MEDIA NAME |
Condition No. 1 |
||
|
TOOL |
CB09U |
||||
|
SPEED |
30 |
||||
|
FORCE |
14 |
||||
|
ACCELERATION |
2 |
||||
|
ASSIGN TOOL |
1 |
||||
|
DISTANCE ADJUST |
OFF |
||||
|
CUT LINE PATTERN |
OFF |
||||
|
BLADE CTRL FORCE |
4 |
||||
|
TANGENTIAL MODE |
OFF |
||||
|
OVERCUT |
START |
0.000 |
|||
|
END |
0.000 |
||||
|
INITIAL DOWN FORCE |
0 |
||||
|
No.2 |
MEDIA NAME |
Condition No. 2 |
|||
|
TOOL |
PEN |
||||
|
SPEED/FORCE/ACCELERATION |
30/12/2 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.3 |
MEDIA NAME |
Condition No. 3 |
|||
|
TOOL |
CB09U |
||||
|
SPEED/FORCE/ACCELERATION |
30/12/2 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.4 |
MEDIA NAME |
Condition No. 4 |
|||
|
TOOL |
CB09U |
||||
|
SPEED/FORCE/ACCELERATION |
20/17/1 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.5 |
MEDIA NAME |
Condition No. 5 |
|||
|
TOOL |
CB09U |
||||
|
SPEED/FORCE/ACCELERATION |
60/17/3 (CE8000-40) 64/17/3 (CE8000-60) 71/17/2 (CE8000-130) |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.6 |
MEDIA NAME |
Condition No. 6 |
|||
|
TOOL |
CB09U |
||||
|
SPEED/FORCE/ACCELERATION |
10/22/2 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.7 |
MEDIA NAME |
Condition No. 7 |
|||
|
TOOL |
CB09U-K60 |
||||
|
SPEED/FORCE/ACCELERATION |
30/17/2 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
|
No.8 |
MEDIA NAME |
Condition No. 8 |
|||
|
TOOL |
CB15U |
||||
|
SPEED/FORCE/ACCELERATION |
5/30/1 |
||||
|
From ASSIGN TOOL to INITIAL DOWN FORCE |
Same as condition 1 |
||||
* Setting items and initial values may be changed.
